17pcs Universal Clutch Alignment Tool Kit

Min. Order:100 Set/Sets
Trade Term:FOB
Payment Terms:L/C, WU, T/T, Paypal
Place of Origin:Zhejiang China(Mainland)
Means of Transport:Ocean,Land,Air
Production Capacity:5000 Sets Per Month
Packing:Blow Box
Delivery Date:30 DaysModel No::LT6222
Color:Red/Blue/BlackPort:Ningbo/Shanghai
Pricing Term:FOBDelivery Time:30 Days
Payment Term:L/C,T/T,PaypalTransport:Sea,Air,Land

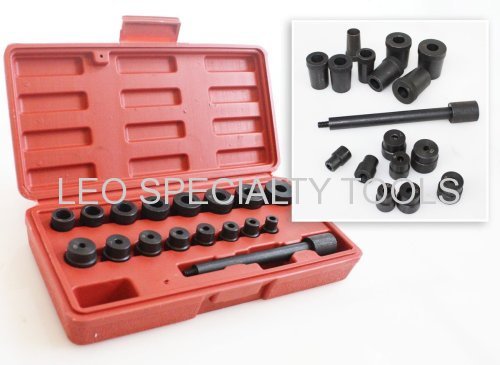

17pcs Universal Clutch Alignment Tool Kit Mechanics Car Clutch Aligning Align


Alignment adaptor bar, 16 adapters,suitable for Audi, Citroen, Fiat, Ford, Honda, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Renault, Rover, Saab, Toyota, Vauxhall, VW, Volvo.

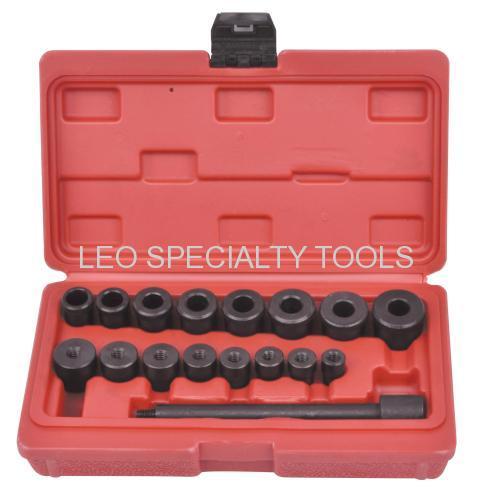

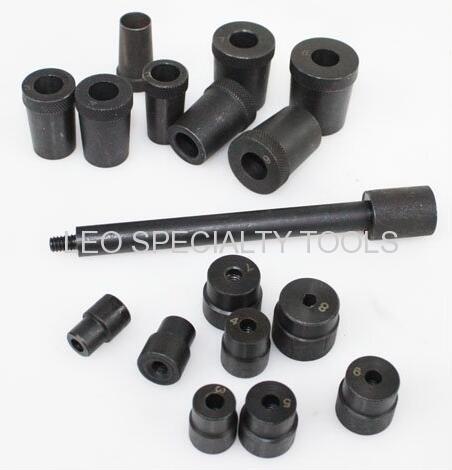

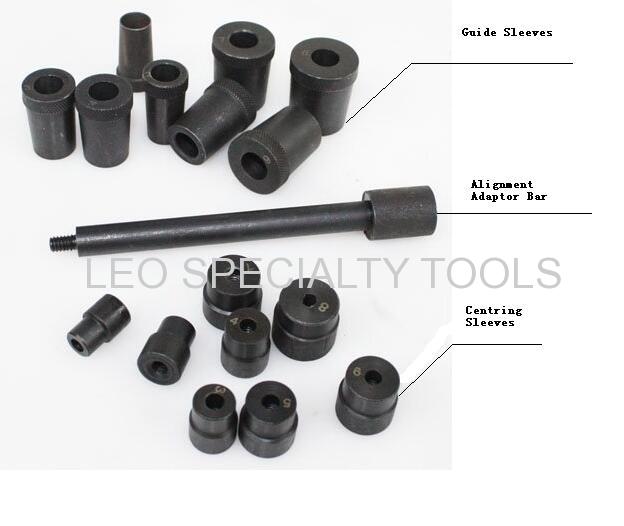

Contents:

Alignment Adaptor Bar

Centring Sleeves, Numbers 1-8

Guide Sleeves, Numbers 1-8


Specification:

1 x 150mm Long Alignment Adaptor Bar

8 x Guide Sleeves Adaptors:

15.5 x 14.2 x 26.6mm

16.7 x 15.4 x 27.0mm

19.0 x 17.5 x 27.5mm

20.0 x 18.6 x 27.5mm

21.4 x 20.0 x 27.4mm

23.0 x 21.6 x 27.5mm

23.5 x 22.0 x 27.5mm

26.6 x 24.2 x 27.5mm

8 x centring sleeves Adaptors:

12.6 x 10.8 x 19.2mm

14.8 x 12.2 x 19.4mm

15.0 x 13.0 x 19.3mm

16.0 x 14.7 x 19.7mm

17.7 x 15.8 x 19.4mm

19.0 x 17.1 x 19.3mm

20.0 x 18.3 x 19.1mm

21.6 x 20.0 x 19.1mm

Features:

Insures perfect alignment of the clutch. Extremely durable, the clutch tool can be used over and over again.

Application:

Audi, Citroen, Fiat, Ford, Honda, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Renault, Rover

Instruction:

1.Select the appropriate guide sleeve for the internal diameter of clutch plate and slide it onto the alignment adaptor bar.

Ensure the taper of the guide sleeve runs towards the threaded end of the adaptor bar.

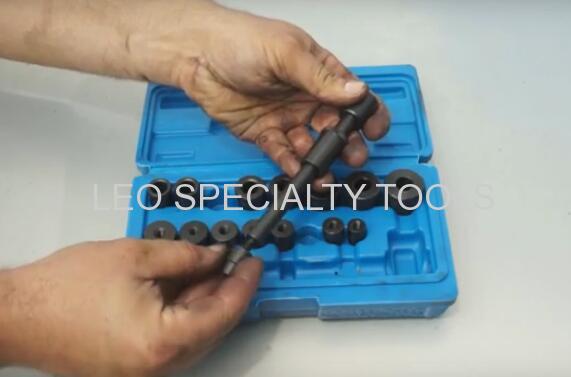

2.Select the appropriate centring sleeve for the spigot bearing and screw it onto the end of the alignment adaptor bar.


3.Slide the clutch plate onto the guide sleeve, ensuring the correct orientation.

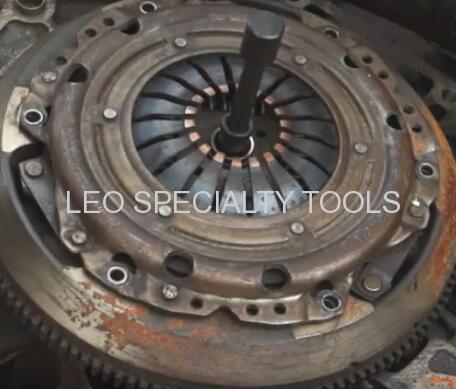

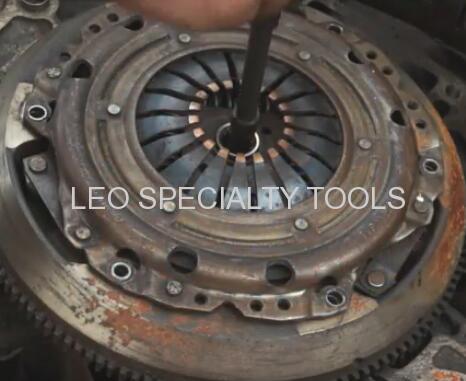

4.Fit the centring sleeve into the spigot bearing and slide the clutch plate, on the guide sleeve, up to the flywheel.


5.Fit the clutch pressure plate and cover assembly and bolt in place.


6.Remove the alignment tool.
