Chain Link Extractor & Riveter Tool Set #35 to #630

Min. Order:100 Set/Sets
Trade Term:FOB
Payment Terms:L/C, WU, T/T, Paypal
Place of Origin:Zhejiang China(Mainland)
Means of Transport:Land, Ocean, Air
Production Capacity:5000 Sets Per Month
Packing:Blow Box
Delivery Date:30 DaysModel No::LT6238
Color:Red/Blue/BlackPort:Ningbo/Shanghai
Pricing Term:FOBDelivery Time:30 Days
Payment Term:L/C,T/T,PaypalTransport:Sea,Air,Land

Chain Link Extractor & Riveter Tool Set #35 to #630


Description:

Universal application for use on motorcycle drive chains and cam chains on cars.

For Breaking and Joining most drive chains from #35 to #630.

Kit includes 3 Breaking Tip sizes to fit most chains: 2.2, 2.9 and 3.8 mm.

Recommended for light to medium-duty use.

For riveting hollow nose master links.

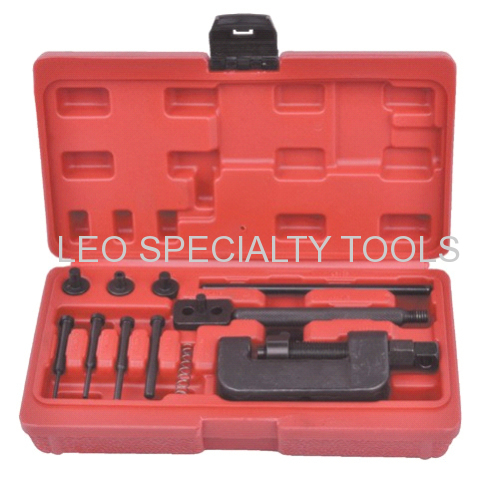

Contents:

1xBody

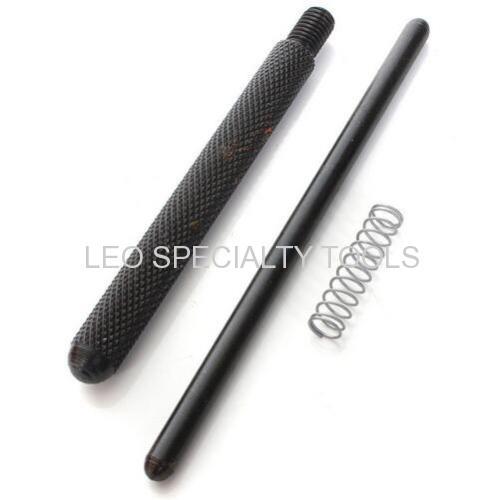

1xAlignment Bolt

1xPush Bolt

1xHandle

1xLever

1xRiveter Tip

1xSpring

2xPress Plate

2xGuide

2xAnvils

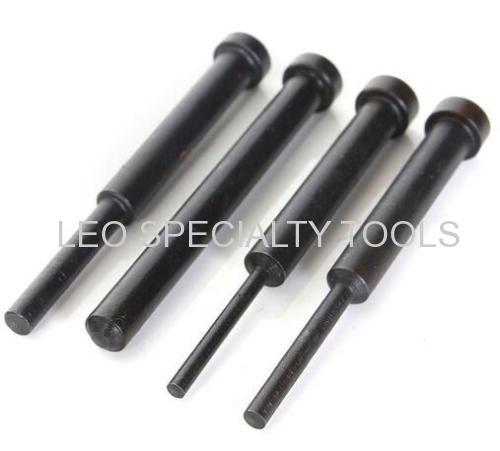

3xBreaking Tip (2.2mm, 2.9mm, 3.8mm)

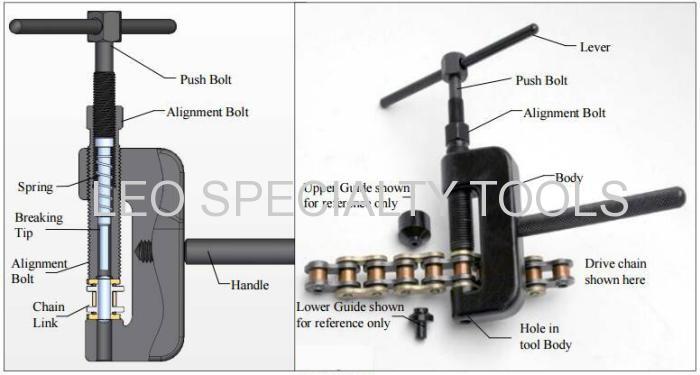

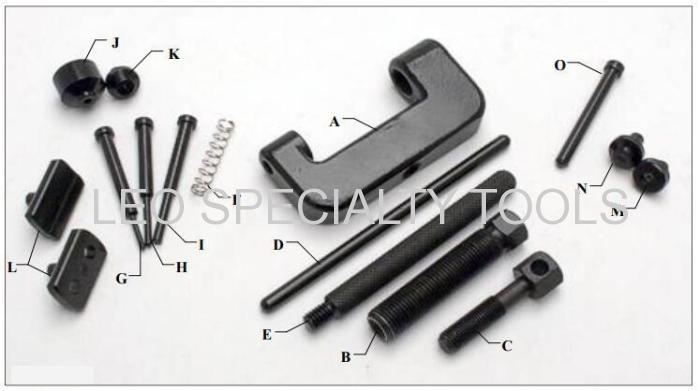

Item

Description

A

Body

B

Alignment Bolt

C

Push Bolt

D

Lever

E

Handle

F

Spring

G

2.2mm Breaking Tip

H

2.9mm Breaking Tip

I

3.8mm Breaking Tip

J

Upper Guide for 2.2mm tip

K

Lower Guide for 2.2mm tip

L

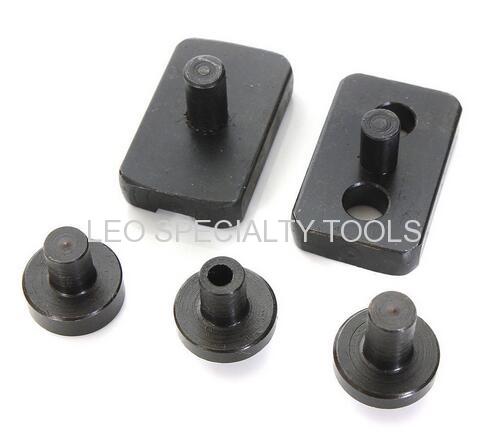

Press Plates (set)

M

Large Anvil

N

Small Anvil

O

Rivet Tip


Application:

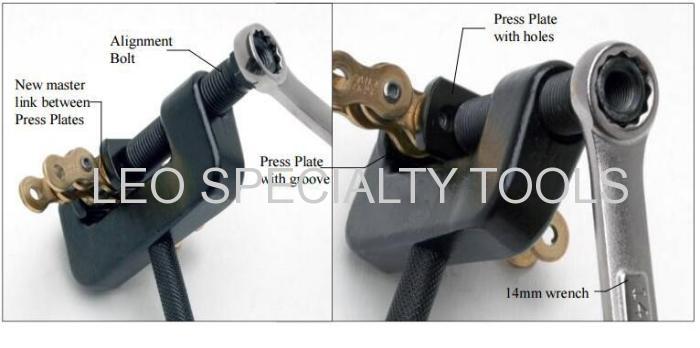

This tool is designed for light to medium-duty use. It will break chains up to size #630, press master link plates on chains up to #530,

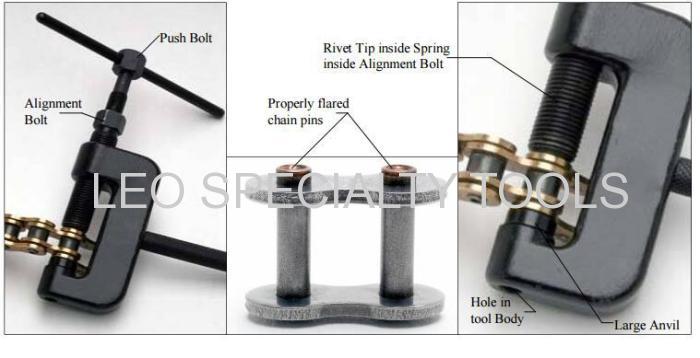

and rivet hollow nosed master link pins on chains up to #630.


2.2mm breaking tip for most cam chains.

2.9mm breaking tip for chains #25 - #35 only.

3.8mm breaking tip for drive chains #428 - #630.


Notice:

Use only the correct breaking tip for your application, or you will damage the tip.


Packing details:

QTY(SET)

G.W.(KGS)

N.W.(KGS)

MEAS(CM)

10

9

8

25*23*26
