Compact Wheel Hub Assembly

Min. Order:100 Set/Sets
Trade Term:FOB
Payment Terms:L/C, WU, T/T, Paypal
Place of Origin:Zhejiang China(Mainland)
Means of Transport:Land, Ocean, Air
Production Capacity:5000 Sets Per Month
Packing:Blow Box
Delivery Date:30 DaysModel No::LT6266
Color:Red/Blue/BlackPort:Ningbo/Shanghai
Pricing Term:FOBDelivery Time:30 Days
Payment Term:L/C,T/T,PaypalTransport:Sea,Air,Land

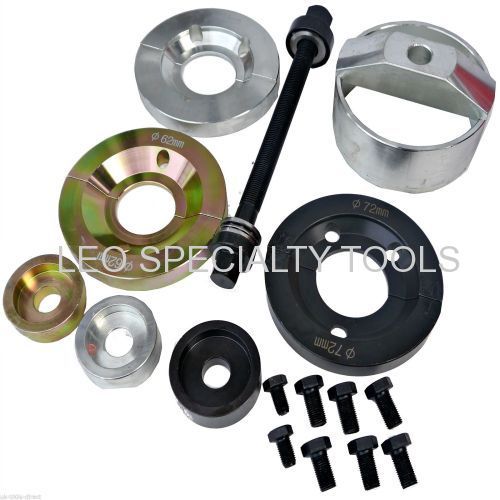

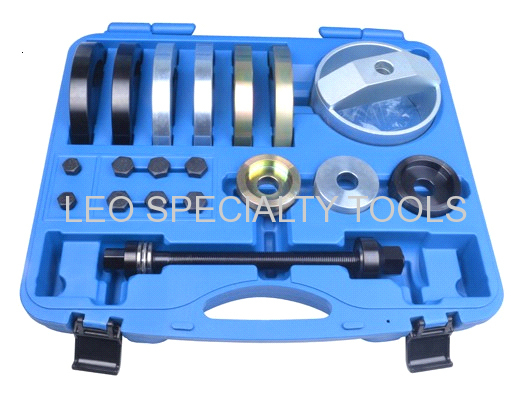

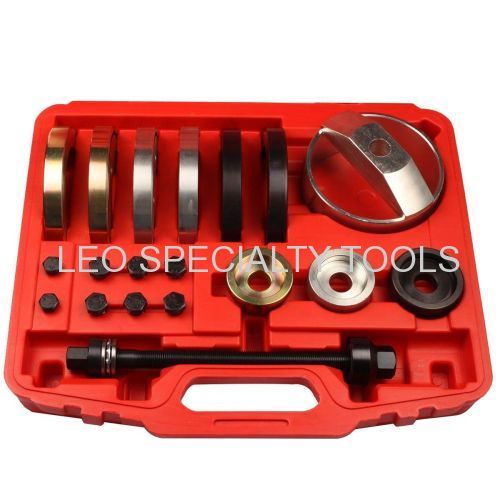

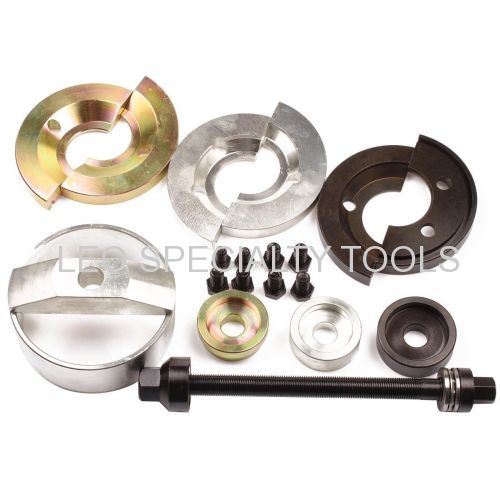

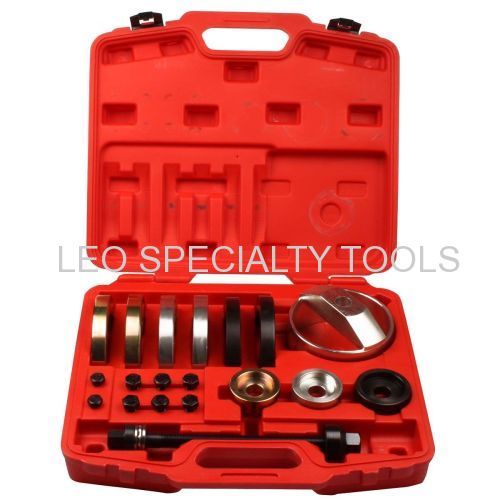

VW GEN 2 COMPACT WHEEL BEARING REMOVER KIT 62  66 & 72mm

AUDI  VW  SEAT  SKODA

Description:

This Comprehensive kit Covers  VW, Audi, Skoda and Seat, basically all vehicles in the VAG Group with GEN2 Bearings.



? For Gen2 Bearings

? 62mm Used for VW Lupo & Audi A2

? 66mm used for VW Fox, VW Polo, Skoda Fabia

? 72mm Used for VW Polo, Seat Ibiza, VW Fox with PAS, Audi A1, Audi A2, Seat Cordoba, Skoda Fabia, Skoda Roomster.


For the removal and installation of bearings and GEN2 bearings units.

GEN 2 bearings can be fitted either to the driven or non driven hubs (suitable for both front and rear hubs - drive and non drive)

Damage free fitting and removal of GEN2 bearings units.

As an integrated hub unit, Gen 2 Ball Bearings are easier to assemble, have higher durability and increased reliability.

Double Row angular contact ball bearing similar to Hub Unit 1 but with a flange on the conventional hub.

Flange with tapped holes or studs and a spigot for mounting the brake disk or drum and wheel.

GEN2 bearing kits has been redesigned to allow the extraction of the relevant bearings without removing the ABS sensor.

Generation II style wheel bearings are a wheel bearing and drive flange that cannot be separated.

By using clamshells and force plates/pins the tool ensures the loads of insertion are taken only on the outer race of the bearing.

Features:

Professional fitting direct on the vehicle (removal with existing wheel hub extractor or universal sliding hammer).

.Minimum working effort-high time saving

.Simple and safe handling.

.Can also be optionally used with a workshop press.

.Possible extensions for bearing unit ?62+66+72mm due to the modular system.


Application range:

Audi A2 1.2L, VW LUPO, VW Polo, FOX, Seat lbiza, Skoda Fabia

Packing details:

QTY(SET)

G.W.(KGS)

N.W.(KGS)

MEAS(CM)

1

15

14

47*42*12
