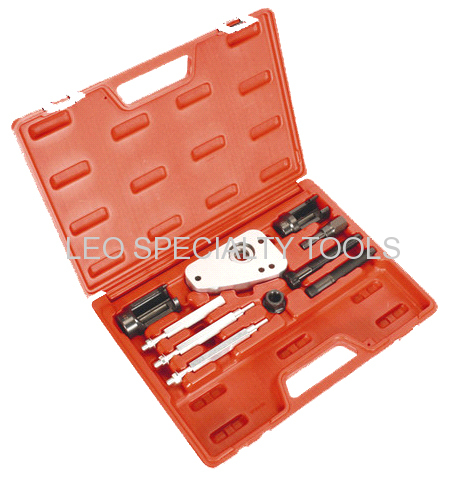

Diesel Injector Puller Tool

Min. Order:100 Set/Sets
Trade Term:FOB
Payment Terms:L/C, WU, T/T, Paypal
Place of Origin:Zhejiang China(Mainland)
Means of Transport:Ocean,Land,Air
Production Capacity:5000 Sets Per Month
Packing:Blow Box
Delivery Date:30 DaysModel No::LT6208
Color:Red/Blue/BlackPort:Ningbo/Shanghai
Pricing Term:FOBDelivery Time:30 Days
Payment Term:L/C,T/T,PaypalTransport:Sea,Air,Land


Diesel Injector Puller Extractor Remover Peugeot Citroen 2.0 2.2 HDI Injectors



Description:

Common Rail Injector removal tool set for removal of seized Injectors on Citro?n and Peugeot diesel HDi engines.

This kit allows the removal of tightly fit injectors nozzles without removing the cylinder head.

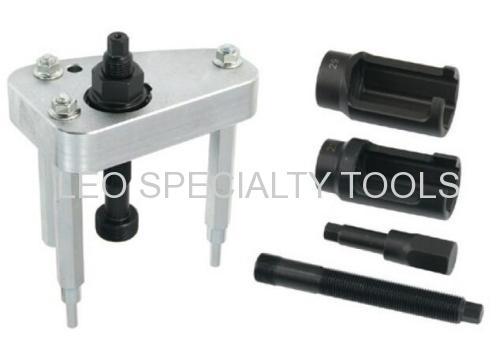

Content:

Pulling bridge that fits perfectly on PSA cylinder head.

Special screw system, that allows a fast and easy nozzles removal.


Item

Description

1

Bridge

2

3 x Bridge Legs

3

2 x force Screws - Thread 17mm, 25mm x Pitch 1mm

4

force Screw nut

5

Injector Sockets 25mm, 29mm

6

Security Hex Key - ?"sq. drive



Engines:

PSA 2.0 & 2.2 HDI (110, 135 PS)

Engine Codes: DW10ATED4 (RHM), DW10ATED4/L4 (RHT), DW10JATED4 (RHW), DW12ATED4/L4 (4HW)

Models:

Bosch injectors

Siemens injectors

Assembly & Operation:

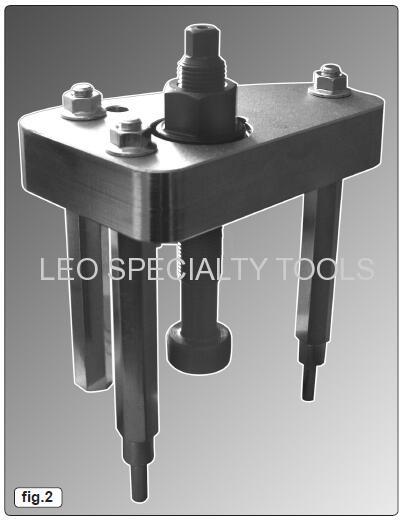

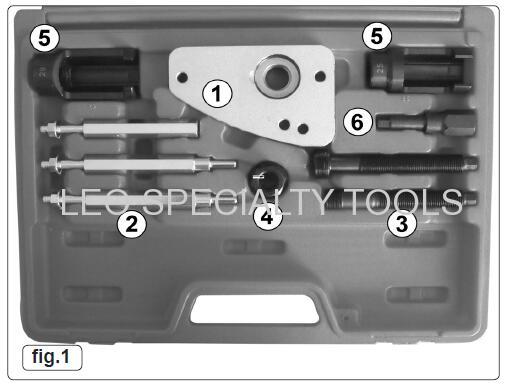

Referring to the individual components in fig.1. assemble the

Injector Puller minus the force screw as shown in fig.2. overleaf. a

different configuration of the bridge legs may be needed

depending on engine.

Disconnect the injector wires and connections as per the manufacturer's instructions.

Remove any carbon build up from around the injector.

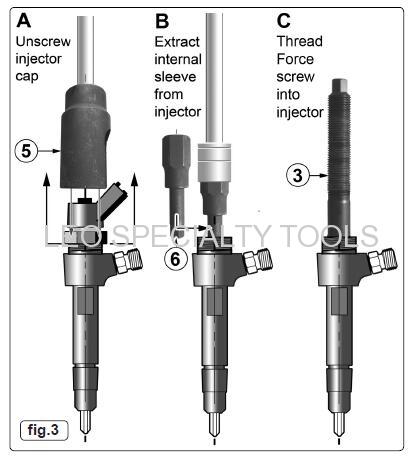

Remove the cap from the injector using the appropriate size socket (fig.3A).

Removing Inner Sleeve. (fig.3).

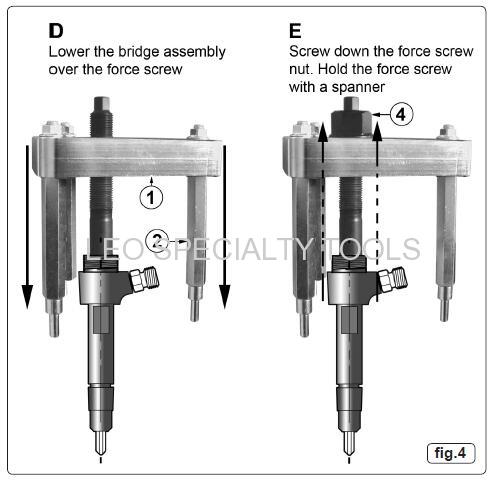

Removing the injector. (fig.4)


Packing details:

QTY(SET)

G.W.(KGS)

N.W.(KGS)

MEAS(CM)

5

13

12

33*31*23.5
