| Min. Order: | 100 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, WU, T/T, Paypal |
| Place of Origin: | Zhejiang China(Mainland) |
| Means of Transport: | Land, Ocean, Air |
| Production Capacity: | 5000 Sets Per Month |
| Packing: | Box |
| Delivery Date: | 30 Days | Model No:: | LT7012 |
|---|---|---|---|
| Port: | Ningbo/Shanghai | Pricing Term: | FOB |
| Delivery Time: | 30 Days | Payment Term: | L/C,T/T,Paypal |
| Transport: | Sea,Air,Land |
Description:

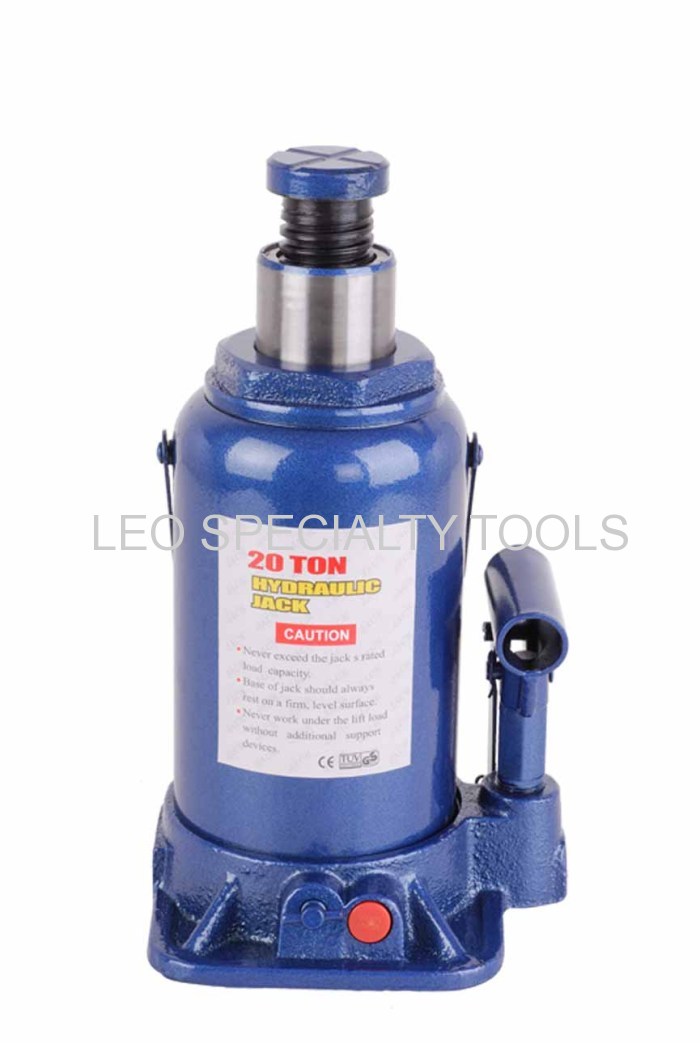

This Hydraulic Bottle Jack is ideal for auto, truck service, farm and shop use. With the heat treated critical stress areas, it ensures long life performance.
The wide, rugged base provides stability and strength. The critical stress points are reinforced for added durability and strength.
This Hydraulic Bottle Jack is must for every auto shop and home.
It features the steel lifting saddle that is engineered to hold load securely.
With the extension screw, it allows Bottle Jack to be adjusted to accommodate desired work height.
To Hold Load Securely
Extension Screw Adjusts to Accommodate Desired Work Height
Heat Treated Critical Stress Areas
Specification:
Lifting Capacity(ton) | Min Height(mm) | Lifting Height(mm) | Adjust Height(mm) | Max Height(mm) | N.W.(kg) |
2 | 158 | 90 | 60 | 308 | 2.3 |
3-4 | 195 | 125 | 60 | 380 | 3.2 |
5-6 | 197 | 125 | 60 | 390 | 4.2 |
8 | 205 | 125 | 60 | 390 | 5.1 |
10 | 205 | 125 | 60 | 390 | 5.8 |
12 | 215 | 125 | 60 | 400 | 7.0 |
15-16 | 225 | 140 | 60 | 425 | 8.0 |
20 | 244 | 145 | 60 | 449 | 11.0 |
30-32 | 285 | 180 | / | 465 | 13.5 |
30-32 | 285 | 180 | / | 465 | 15.0 |
50 | 300 | 180 | / | 480 | 32.0 |
