Description:

• Clear funnel allows a quick visual check of the coolant from across the shop. Comes with a lid to keep contaminants out as well as store the caps and adapters.

• Eliminates trapped air Pockets which usually cause erratic cooling system and heater performance.

• It controls the proper amount of coolant entering system and enables unattended Filling of the cooling system.

• The funnel eliminates squeaky belts caused by coolant overflow and protects the environment. Straight extension and two 45 degree elbows for angled and hard-to-reach applications.

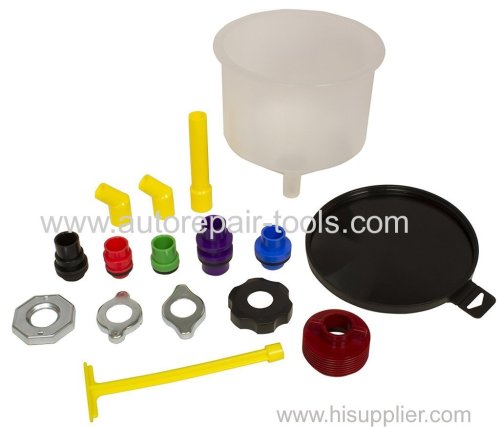

• Five different colored radiator adapters and five caps to fit most cars, pickups, trucks, and many farm tractors.






Specification:

Lid for Spill-Free
Clear Funnel
Red Adapter B with gasket
45° Elbow
Fluid Stopper
Large Cap A
Medium Cap B
Small Cap C
Black Adapter A with gasket
Blue Adapter E with gasket
Green Adapter C with gasket
Purple Adapter D with gasket

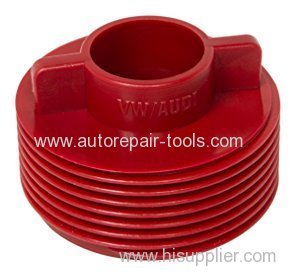

VW/Audi/Porsche Cap
Threaded Cap D for GM









Instruction:

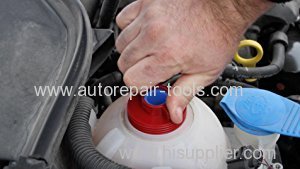

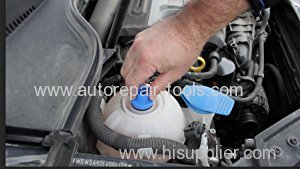

• First install the correct sized adapter into the correct cap. Place the gasket in a downward position. Tighten the cap with adaptor to make sure it doesn't leak.

• If 45° elbow or extension needed, place the funnel after elbow or extension is placed well into the adapter opening.

• Fill funnel slowly and carefully with coolant about 1/3 full.

• When run the engine with funnel attached, fluid level should be at low position. Keep RPM on idle position. (Shut down the engine if notice the fluid level rise excessively. Wait for fluid level go lower before restarting the engine.)

• Use Fluid Stopper for remaining fluid inside the funnel to flow to the radiator hose by squeeze it and release.

• After finish, remove the funnel ( and or extension/elbow) & adapter, close the radiator with cap tightly.


Warning: Do not open cap if radiator is hot! Hot fluid can erupt and cause burns.
