Description:

Solid and fast solution for the repair of defective oil drain screw thread without the expensive replacement of the sump.
Application: The damaged thread is simply to tap away to the next size expands. Oil drain screw in part with Allen drive for oil pans with recessed drain opening suitable.

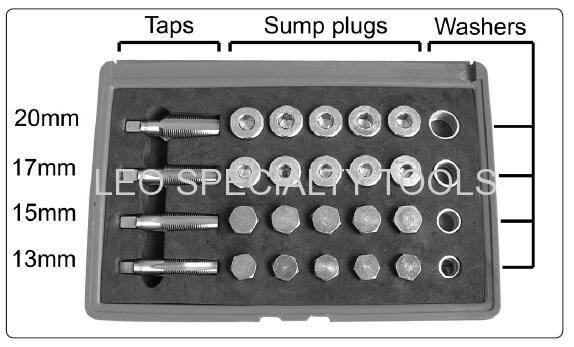

Content:

• Special Tap M13 x 1.5 and 5 Oil drain plug gaskets with aluminum M13 x 1.5

• Special Tap M15 x 1.5 and 5 Oil drain plug gaskets with aluminum M15 x 1.5

• Special Tap M17 x 1.5 and 5 Oil drain plug gaskets with aluminum M17 x 1.5

• Special Tap M20 x 1.5 and 5 Oil drain plug gaskets with aluminum M20 x 1.5

  Universal applications for: Audi, BMW, Citroen, Mercedes-Benz, Ford, Fiat, Honda, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Toyota, Volvo, VW etc.

Introduction:

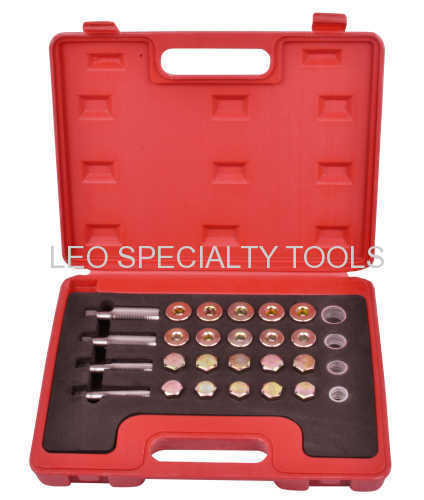

Easily repair sump, gearbox and differential drain plug threads. Tap the damaged thread, then fit a new drain plug and washer (supplied). Set is suitable for the most popular threads used on cars and light commercial vehicles. Supplied in storage case.

Specification:

Tap Sizes: M13, M15, M17, M20

Instructions:

1.To repair a damaged drain plug thread first establish the thread size of the damaged plug then choose a tap that is slightly larger than the existing thread.

2. Mount the tap in a suitable tap wrench and lightly oil it.

3. Introduce the tap into the damaged sump hole ensuring that it enters in line with the hole. Rotate the tap until it begins to bite then advance it a half turn and back it off by a quarter turn.

4. As thread cutting proceeds periodically remove the tap and clean it to prevent a build up of metal shavings being deposited in the sump.

5. Proceed until the tap is running freely in the hole then remove it.

6. Fit the appropriate sump plug and washer and tighten.

7. After the next use of the vehicle check that the plug and washer are oil tight.
