Min. Order: | 100 Set/Sets |
---|---|
Trade Term: | FOB |
Payment Terms: | L/C, WU, T/T, Paypal |
Place of Origin: | Zhejiang China(Mainland) |
Means of Transport: | Land, Ocean, Air |
Production Capacity: | 5000 Sets Per Month |
Packing: | Blow Box |
Delivery Date: | 30 Days | Model No:: | LT6275 |
---|---|---|---|
Color: | Red/Blue/Black | Port: | Ningbo/Shanghai |
Pricing Term: | FOB | Delivery Time: | 30 Days |
Payment Term: | L/C,T/T,Paypal | Transport: | Sea,Air,Land |

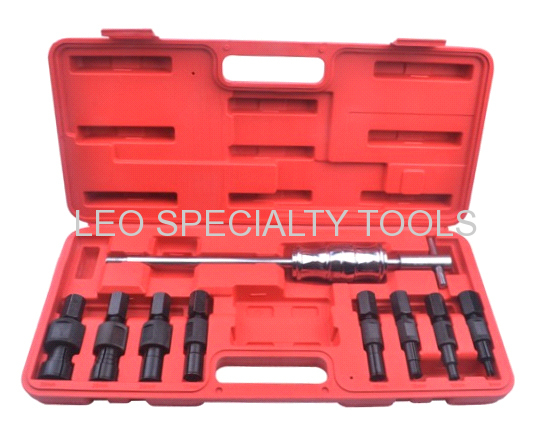

This is a internal "blind-hole" bearing extractor set. Capable of removing bearings internally.
Features:
Perfect for pulling jobs requiring an internal pull, such as pilot bearings
Includes 8 expandable collets, Fitting a wide range of applications
Select the appropriate sized collet by comparing it with the application
Insert collet, expand it to fit the hole, and attach the slide hammer assembly
Specifications:
Slide Hammer Shaft: 1.2ft Long (390mm)
Hammer: 2.15lb. (940g), 100mm .
Sizes: 8 mm, 10 mm, 12 mm, 15 mm, 17 mm, 20 mm, 25 mm and 30 mm

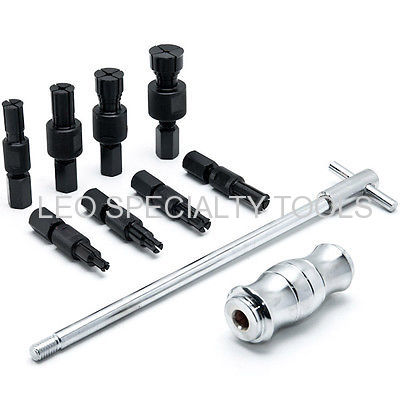

Package Includes:
1x Slide Hammer with T-Handle: 2 kg (Chrome Plated)
8x Collets:
8 to 10mm (5/16" to 13/32")
10 to 12mm (13/32" to 15/32")
12 to 14mm (15/32" to 9/19")
15 to 17mm (9/32" to 11/16")
17 to 20mm (11/16" to 25/32")
20 to 24mm (25/32" to 15/16")
25 to 29mm (1" to 1-1/8")
30 to 32mm (1-3/16" to 1-1/4")
1x Carrying Case
Packing details:
QTY(SET) | G.W.(KGS) | N.W.(KGS) | MEAS(CM) |
4 | 16 | 15 | 48*33*22 |
