| Min. Order: | 100 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, WU, T/T, Paypal |
| Place of Origin: | Zhejiang China(Mainland) |
| Means of Transport: | Land, Ocean, Air |
| Production Capacity: | 5000 Sets Per Month |
| Packing: | Blow Box |
| Delivery Date: | 30 Days | Model No:: | LT6289 |
|---|---|---|---|

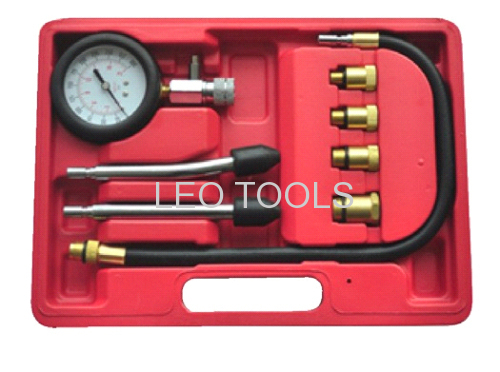

| Color: | Red/Blue | Pressure Gauge Range: | 0-300 Psi |
| Hose Length: | 45cm | Adapter Size: | M10 x1.0,M12x 1.25, M14 x 1.25,M18 x 1.5 |
| Accessories Material: | Brass |

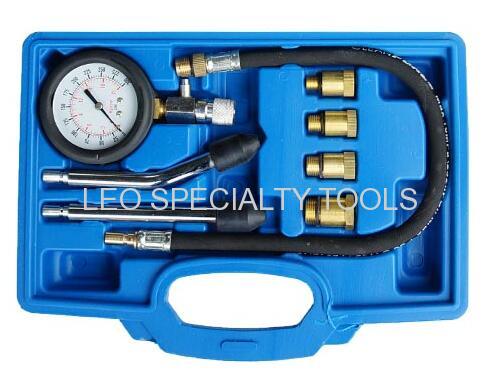

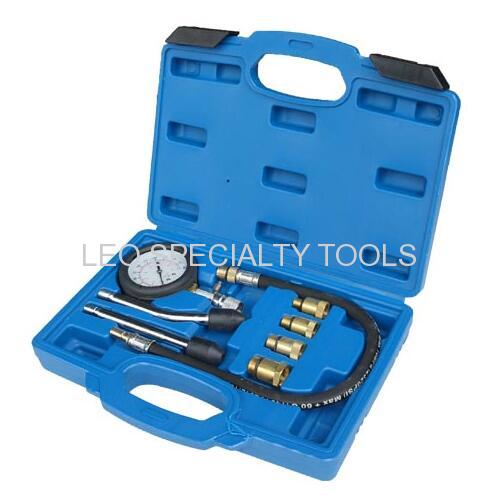

Features:
This item is perfect for checking compression on petrol engine quickly and accurately. It diagnoses problems quickly with 2 rubber cones ends which do not need to thread into head. Our item is suitable for petrol engines on lawn mowers, motorbikes, cars, trucks and so on.
Feature:
High-quality
Checking compression on petrol engine quickly and accurately
Easy pressure release button on side of tester
Completed kit comes with adapters for most applications
Kits includes 2 rubber cones ends which do not need to thread into head

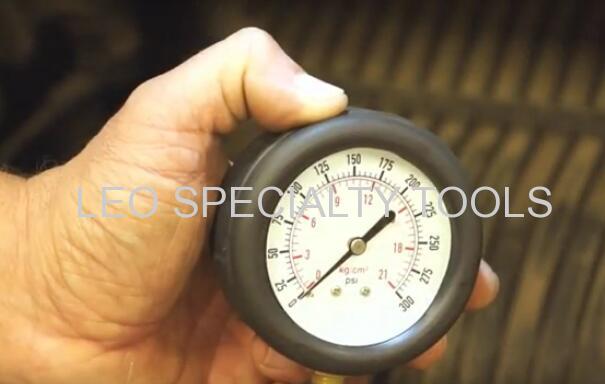

3" gauge features dual color scale
Comes with a plastic box for easy carrying
Specifications:
Dimensions of gauge: 0-20 Bar/0-300 Psi.
Length of gauge: 3''
Size of threads: m18x1.5, m14x1.25, m12x1.25, m10x1.0
Length of push-on connectors: 6''
Length of flexible hose: 17.7'' (45cm)
Description:
Completed kit comes with adapters for most applications
Check the condition of your piston ring & valve seats
3" gauge features dual color scale.
0-300 PSI
0-20 bar
4 Spark plug thread adapter:
M10 x 1.0
M12 x 1.25
M14 x 1.25
M18 x 1.5
Quickly and accurately check compression on petrol engine
450mm flexible extension
2 Pc rubber cones ends for quick check (No need to thread into head) Blow mold case included
Easy to hook up and use.
Includes hose and all adapter clamps.
Applications:
Cylinder pressure gauge is measuring engine cylinder compression force of tools.
When measuring the first to heat engine make water temperature reaches 70-80 °C flameout and measurement.
When measuring diesel engine for its compression force big, must the pressure multiplier closely fastening in installation of the injector position can measure.
Measuring gas automata compression force is relatively small, usable hand holding the pressure gauge, the direct roof in spark plug hole measurements. The best measure 2 -- 3 times, take its average, and the type of cylinder pressure regulating compared, general gasoline engine shall be not less than 20% of the required standard, shall not be less than 15% of diesel engine standard.
Each cylinder pressure between poor: shall not exceed 5%, diesel engine shall not exceed 8 percent.
Application Show:

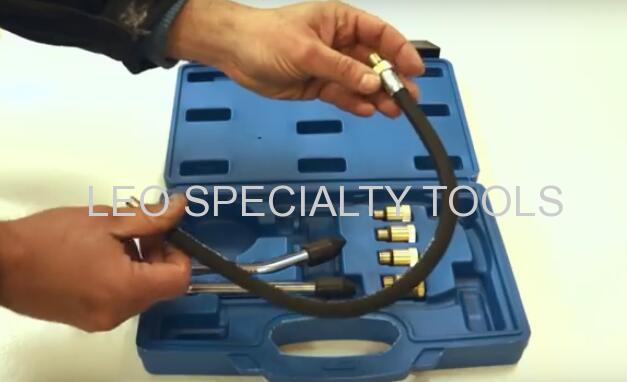

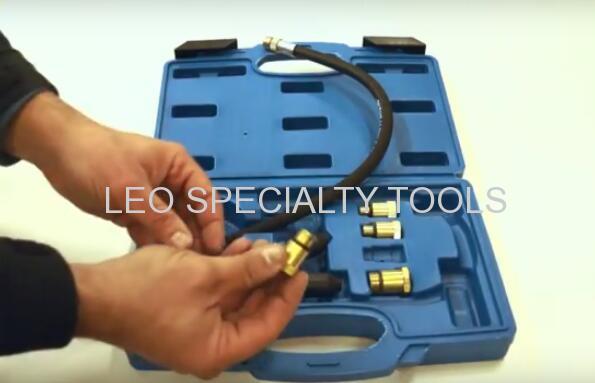

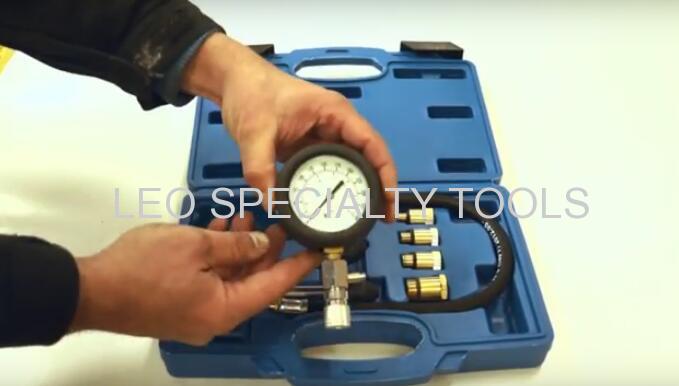

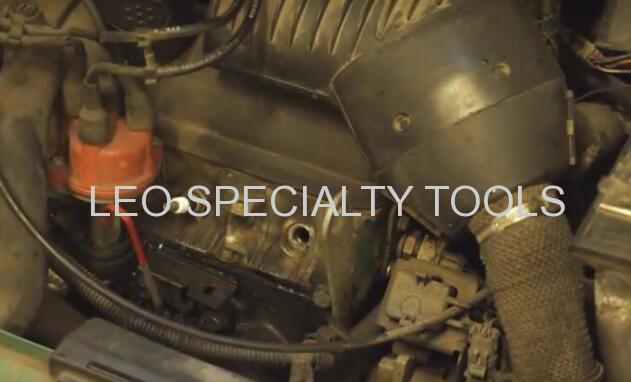

First step:open the tool box, remove the pressure gauge and hose,and choose the suitable adaptor for your engine.

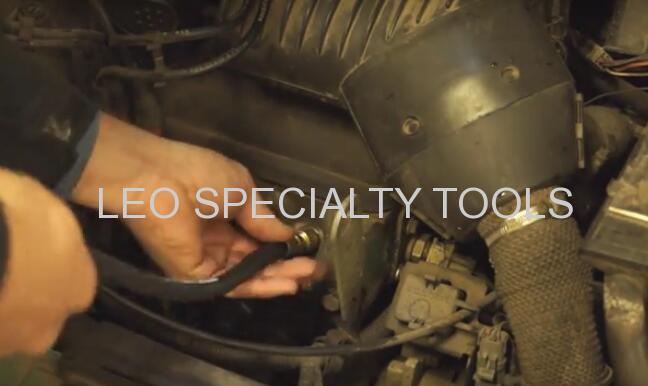

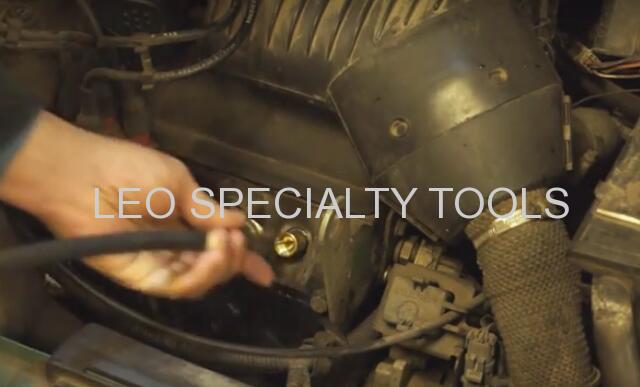

Second step:connect the pressure gauge and engine with the adaptor and hose.
Third step:start testing.
Finally,press the pressure reducing valve after the test.
Packing details:
| QTY(SET) | G.W.(KGS) | N.W.(KGS) | MEAS(CM) |
| 10 | 15 | 14 | 47*31.5*36 |
