Min. Order: | 100 Set/Sets |
---|---|
Trade Term: | FOB |
Payment Terms: | L/C, WU, T/T, Paypal |
Place of Origin: | Zhejiang China(Mainland) |
Means of Transport: | Land, Ocean, Air |
Production Capacity: | 5000 Sets Per Month |
Packing: | Blow Box |
Delivery Date: | 30 Days | Model No:: | LT6288 |
---|---|---|---|
Color: | Red/Blue | Gauge Diameter: | 2-1/2" |
Hose: | 13" | Adapter: | 14mm/18mm |
Port: | Ningbo/Shanghai |

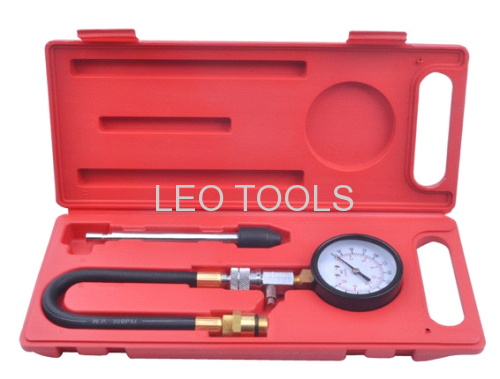

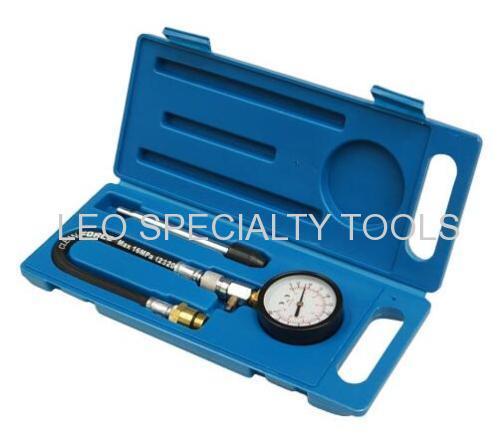

Features:
Easy-reading 2-1/2"diameter gauge,features colour - coded quadruple,calibrations with 0-300psi, 21kg/cm,21bar & 2100kpa.
13"durable rubber hose with 14mm/18mm adapter.
6" heavy-duty stem with universal rubber cone adapter fits all plug holes.
Description:
300 psi and copper adapter with an extension bar easy to carry l Easy-reading 2-1/2" diameter gauge features color-coded quadruple calibrations with 0~300psi,21kg/cm,21 bar&2100kpa. l 13" durable rubber hose with 12mm/18mm adapter. l 6" heavy-duty stem with universal rubber cone adapter fits all plug holes.
Easy to hook up and use
Includes hose and all adapter clamps
Applications:
Cylinder pressure gauge is measuring engine cylinder compression force of tools.
When measuring the first to heat engine make water temperature reaches 70-80 °C flameout and measurement.
When measuring diesel engine for its compression force big, must the pressure multiplier closely fastening in installation of the injector position can measure.
Measuring gas automata compression force is relatively small, usable hand holding the pressure gauge, the direct roof in spark plug hole measurements. The best measure 2 -- 3 times, take its average, and the type of cylinder pressure regulating compared, general gasoline engine shall be not less than 20% of the required standard, shall not be less than 15% of diesel engine standard.
Each cylinder pressure between poor: shall not exceed 5%, diesel engine shall not exceed 8 percent.
Packing details:
QTY(SET) | G.W.(KGS) | N.W.(KGS) | MEAS(CM) |
20 | 13 | 12 | 56*33*22 |
