Sub-Frame Bushing Remover Tool

Min. Order:100 Set/Sets
Trade Term:FOB
Payment Terms:L/C, WU, T/T, Paypal
Place of Origin:Zhejiang China(Mainland)
Means of Transport:Ocean,Land,Air
Production Capacity:5000 Sets Per Month
Packing:Blow Box
Delivery Date:30 DaysModel No::LT6257
Color:Red/Blue/BlackPort:Ningbo/Shanghai
Pricing Term:FOBDelivery Time:30 Days
Payment Term:L/C,T/T,PaypalTransport:Sea,Air,Land

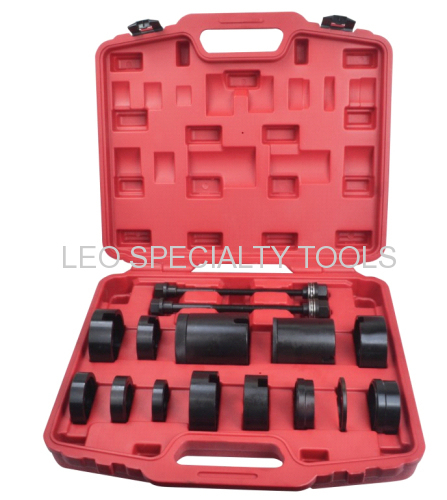

Sub-Frame Bush Installer/Remover Tool Set for Mercedes Benz & BMW



Description:

For the removal or installation of sub-frame arm bushes on Mercedes Benz and BMW.

This tool is designed for replacing the sub-frame arm bushes whilst still on the vehicle and without the need for removing the rear axle assembly.

Without causing damage, the fine thread and thrust bearing allows the bush to be fitted quickly and without hassle.

Supplied in blow moulded case.

Applicable:

MERCEDES BENZ W220, W211, W203

BMW E31, E32, E34, E38, E39, E60, E65, E66

Specifications:

? Part 1 L 15mm x Outer diameter 72mm x Inner diameter 20mm

? Part 2 L 24mm x Outer diameter 80mm x Inner diameter 45mm

? Part 3 L 85mm x Outer diameter 82mm x Inner diameter 70mm

? Part 4 L 17mm x Outer diameter 64mm x Inner diameter 42mm

? Part 5 L 18mm x Outer diameter 68mm x Inner diameter 49mm

? Part 6 L 14mm x Outer diameter 57mm x Inner diameter 46mm

? Part 7 L 86MM x Outer diameter 72mm x Inner diameter 59mm

? Part 8 L 32mm x Outer diameter 82mm x Inner diameter 70mm

? Part 9 L 30mm x Outer diameter 75mm x Inner diameter 65mm

? Part 10 L 22mm x Outer diameter 70mm x Inner diameter 57mm

? Part 11 L 5mm x Outer diameter 72mm x Inner diameter 58mm

? Part 12 L 30mm x Outer diameter 69mm x Inner diameter 55mm

? Part 13 L 33mm x Outer diameter 85mm x Inner diameter 70mm

? Part 14 L 22mm x Outer diameter 69mm x Inner diameter 55mm

? Part 15 L 36mm x Outer diameter 82mm x Inner diameter 70mm

? Part 16 L 270mm x M14 with ball bearing screw nut.

? Part 17 L 270mm x M10 with ball bearing screw nut.

Packing details:

QTY(SET)

G.W.(KGS)

N.W.(KGS)

MEAS(CM)

1

15

14

47*42*12
