VW Audi Bushing Removal Tool

Min. Order:100 Set/Sets
Trade Term:FOB
Payment Terms:L/C, WU, T/T, Paypal
Place of Origin:Zhejiang China(Mainland)
Means of Transport:Ocean,Land,Air
Production Capacity:5000 Sets Per Month
Packing:Blow Box
Delivery Date:30 DaysModel No::LT6249
Color:Red/Blue/BlackPort:Ningbo/Shanghai
Pricing Term:FOBDelivery Time:30 Days
Payment Term:L/C,T/T,PaypalTransport:Sea,Air,Land

Rear Suspension Bush Removal/Installation Tool Kit For VW Audi A3


Description:

This tool makes it possible to service these bushings on the vehicle without removing the rear axle assembly.

Typically the old bushing is removed by cutting or burning out the rubber and then slitting or hammering out the bearing shell. This tool is then used to press the new bushing into place. This can be done on the vehicle and does not require removing the axle to allow access to a traditional press.

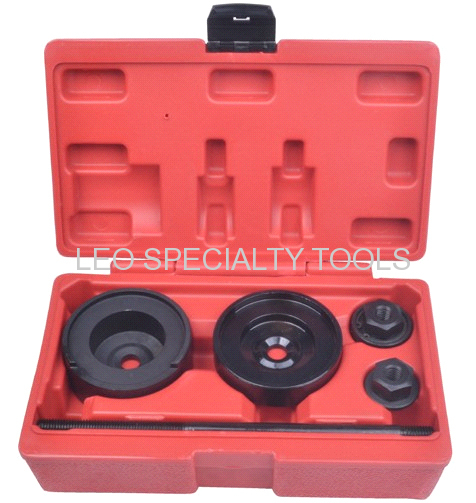

It's fine thread and thrust bearing allows the bush to be fitted quickly and easily without causing damage. All tools are neatly packed in a sturdy case for easy transport.

Specifications:

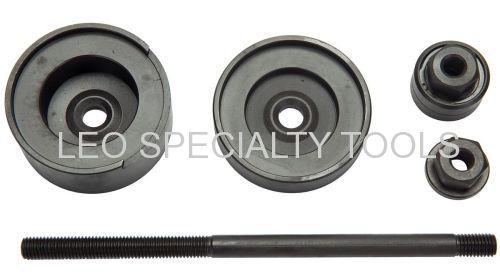

Material: Steel Body + Chemically Blackened Finish

1 thrust piece, 84 mm in outer diameter, 20 mm height, 76 mm inside diameter, inner hole 49 mm in diameter, 6 mm height

1 thrust piece, 84 mm in outer diameter, 34 mm height, 76 mm inside diameter, inner hole 49 mm in diameter, 23 mm height

1 spindle, 240 mm Length, M12 x 1.75 mm, compressible up to 46 mm length

1 nut with ball bearings for pressing pressure piece by screws, hex drive, spanner size 24 mm

1 nut for holding piece on the spindle, hexagon drive, spanner size 24 mm
Application:

Audi A3

VW Golf IV

Bora 1.4/ 1.6/ 1.8/ 2.0 and 1.9d (2001 later)

Packing details:

QTY(SET)

G.W.(KGS)

N.W.(KGS)

MEAS(CM)

5

16

15

46*27*17
