| Min. Order: | 100 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, WU, T/T, Paypal |
| Place of Origin: | Zhejiang China(Mainland) |
| Means of Transport: | Land, Ocean, Air |
| Production Capacity: | 5000 Sets Per Month |
| Packing: | Blow Box |
| Delivery Date: | 30 Days | Model No:: | LT6244 |
|---|---|---|---|
| Color: | Red/Blue/Black | Port: | Ningbo/Shanghai |
| Pricing Term: | FOB | Delivery Time: | 30 Days |
| Payment Term: | L/C,T/T,Paypal | Transport: | Sea,Air,Land |
Description:

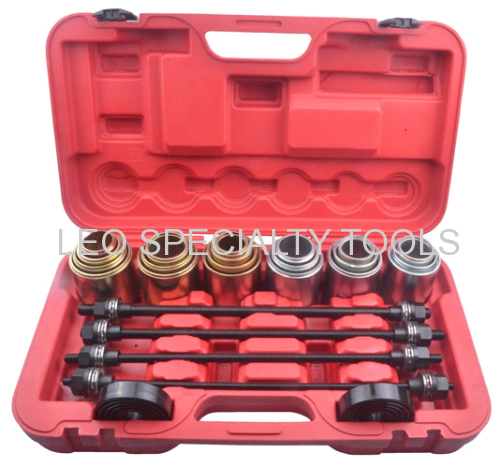

The 26 Pieces of Press and Pull Sleeve Kit is designed for removal and installation of all types of bearings, bushes and seals. It is designed to remove and install bearings including Silent Bearings, Hydraulic Bearings, Bearing Bushes, Ball Bearings, Shaft Seals, Rubber Bearings and many more. It is crafted to remove bushes, bearing or seals without the need of a press and to reduce the possibility of damaging the bearings/suspension housings.
Tool Press and Pull Sleeve Kit can also be used with a workshop press if required. It kit contains a unique design with U-Plot on each sleeve for operator to easy visual inspect removal and installation. The spindles have thrust bearings fitted to both ends making the extracting and installing much easier. The end caps are also double sided making them a universal fit for the sleeves
Fully universal application and suitable for domestic or import vehicles: passenger cars or light trucks. Hardened and tempered for maximum durability. Moulded case for easy transportation.
Contents:
? 20 x Press Sleeves.
? Inside diameter range: 34 - 72mm.
? Outside diameter range: 44 - 82mm.
? 2 x step plate discs.
? 4 x pulling spindles with thrust bearings
Specifications:
Sleeve Wall Thickness: 5mm
Sleeve Height: 94mm
Sleeve End Caps: 83 x 20mm
Force Screw Length: 450MM
Force Screw Threads:
10 x 1.5mm, 12 x 1.5mm, 14 x 1.5mm, 16 x 1.5mm
Inside Diameter from 34 - 72mm in 2mm steps:
34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72mm..
Outside Diameter from 44 - 82mm in 2mm steps:
44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82mm..
Features:
Hardened and tempered for maximum durability.
Reduces the possibility of damaging the bearing/suspension housings.
Supplied with four stepped end plates and four force screws in carry-case.
Blow moulded plastic case keeps all the tools organized and easy to transport.
Packing details:
QTY(SET) | G.W.(KGS) | N.W.(KGS) | MEAS(CM) |
1 | 21 | 20 | 56*32*15 |
